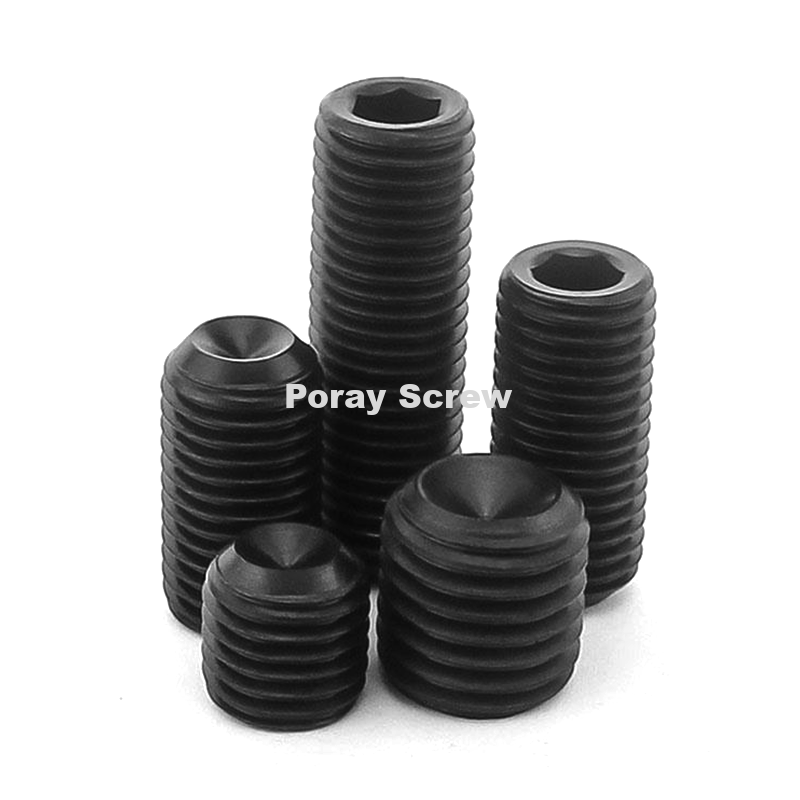

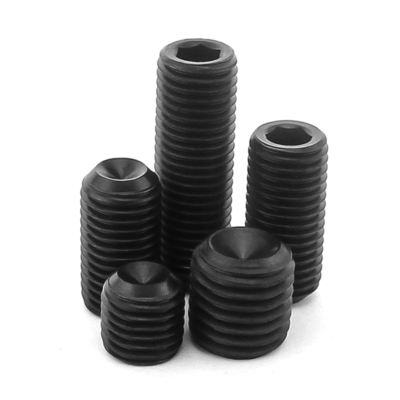

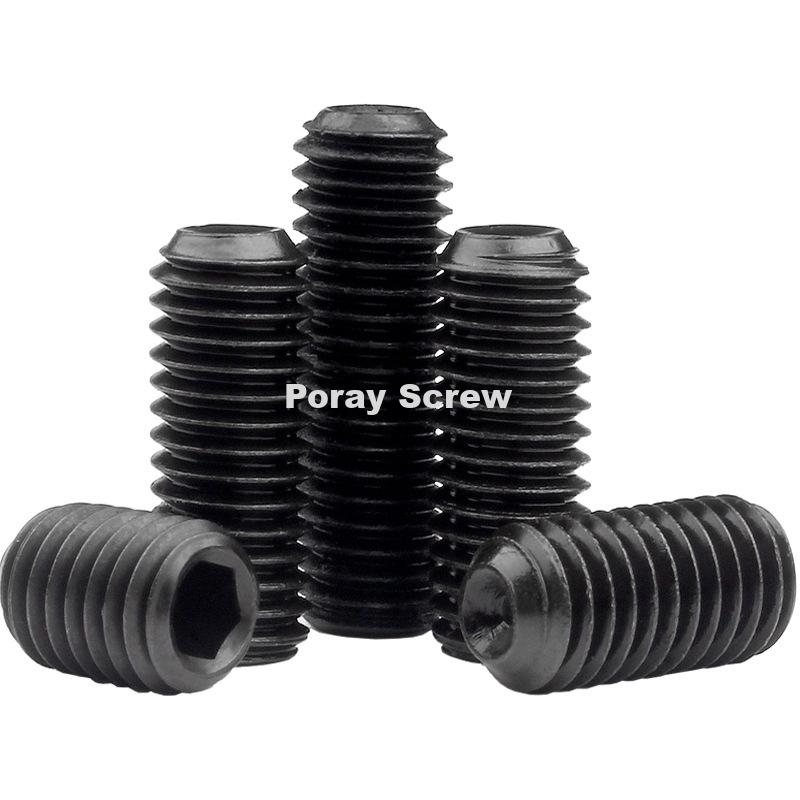

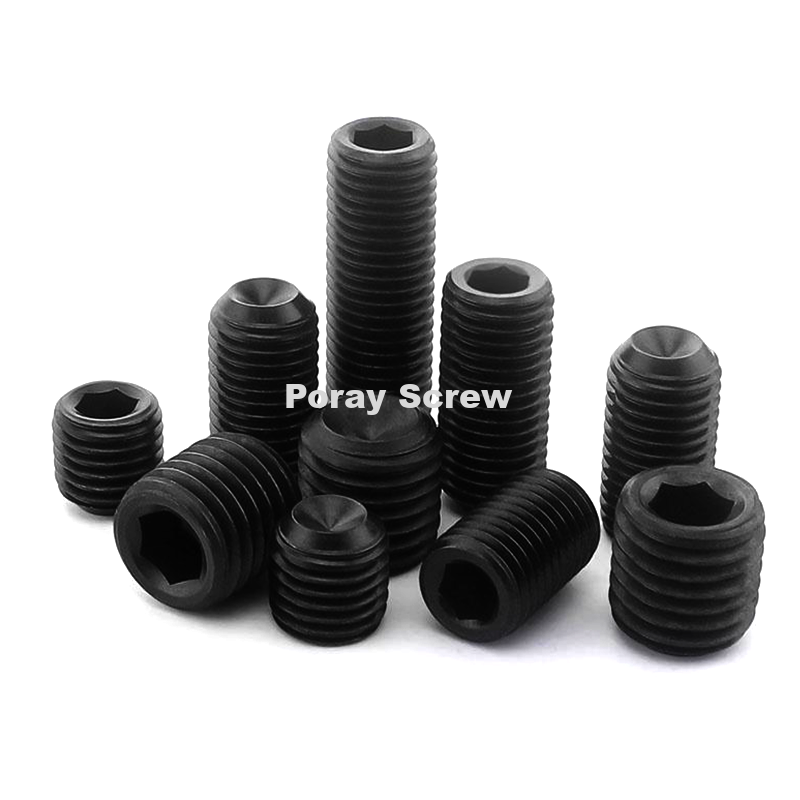

Black Oxide Coating Cup Point Set Screws Grub Screws with Hollow Concave Point DIN916
Cup Point Set Screws are specially designed to hold components in place with pressure from the tip, rather than fastening against the threads. Their unique cup point tip allows for the set screw to maintain the best possible clamping in comparison to the other available set screws on the market. Cup point set screws have a considerably higher lifespan compared to alternative set screw types.
Material:
Alloy steel black oxide finish/ Carbon steel black oxide finish
A high strength heat treated alloy steel/ carbon steel. A chemically produced coating that leaves the steel surface with a matte black finish and offers mild corrosion resistance.
PORAY SCREW offers not only standard and metric cup point set screws in stainless steel, but also alloy and carbon steel. Additional features such as pre-applied nylon-patch and nylon-pellets are also available. OEM & ODM could be provided. Welcome your inquiry.
Thread Diameter d | P | dp | e min | s | t min | L | ||||
max | min | nominal | min | max | ||||||
M1.4 | 0.3 | 0.7 | 0.45 | 0.803 | 0.7 | 0.711 | 0.724 | 0.6 | 1.4 | 2.5-6 |
M1.6 | 0.35 | 0.8 | 0.55 | 0.803 | 0.7 | 0.711 | 0.724 | 0.7 | 1.5 | 2.5-6 |
M1.8 | 0.35 | 0.9 | 0.65 | 0.803 | 0.7 | 0.711 | 0.724 | 0.8 | 1.6 | 2.5-6 |
M2 | 0.4 | 1 | 0.75 | 1.003 | 0.9 | 0.889 | 0.902 | 0.8 | 1.7 | 3-10 |
M2.5 | 0.45 | 1.2 | 0.95 | 1.427 | 1.3 | 1.27 | 1.295 | 1.2 | 2 | 3-10 |
M3 | 0.5 | 1.4 | 1.15 | 1.73 | 1.5 | 1.52 | 1.545 | 1.2 | 2 | 4-20 |
M4 | 0.7 | 2 | 1.75 | 2.3 | 2 | 2.02 | 2.045 | 1.5 | 2.5 | 4-20 |
M5 | 0.8 | 2.5 | 2.25 | 2.87 | 2.5 | 2.52 | 2.56 | 2 | 3 | 5-25 |
M6 | 1 | 3 | 2.75 | 3.44 | 3 | 3.02 | 3.08 | 2 | 3.5 | 6-35 |
M8 | 1.25 | 5 | 4.7 | 4.58 | 4 | 4.02 | 4.095 | 3 | 5 | 8-40 |
M10 | 1.5 | 6 | 5.7 | 5.72 | 5 | 5.02 | 5.095 | 4 | 6 | 12-40 |
M12 | 1.75 | 8 | 7.64 | 6.86 | 6 | 6.02 | 6.095 | 4.8 | 8 | 16-40 |
M14 | 2 | 9 | 8.64 | 6.86 | 6 | 6.02 | 6.095 | 5.6 | 9 | |
M16 | 2 | 10 | 9.64 | 9.15 | 8 | 8.025 | 8.115 | 6.4 | 10 | 20-40 |
M18 | 2.5 | 12 | 11.57 | 11.43 | 10 | 10.025 | 10.115 | 7.2 | 11 | |
M20 | 2.5 | 14 | 13.57 | 11.43 | 10 | 10.025 | 10.115 | 8 | 12 | 20-40 |
M22 | 2.5 | 16 | 15.57 | 13.72 | 12 | 12.032 | 12.142 | 9 | 13.5 | |
M24 | 3 | 16 | 15.57 | 13.72 | 12 | 12.032 | 12.142 | 10 | 15 | 30-60 |
More products of set screws available:
DIN913 Flat Point Set Screw, DIN914 Cone Point Set Screw, DIN915 Half Dog Set Screw, DIN916 Cup Point Set Screw, DIN916 with Knurling, Soft Nylon Tip Set Screw, Ball Point Set Screw, Torx Set Screw, Denoise, Carbon Steel Set Screw, Slotted Set Screw, Off-Center Rivet, Non-Standard Set Screw;
