Customized m2m3m4m5m6m8m10 Allen Machine Screw Black Oxide Hex Socket Set Screw With Knurled Head
The Socket Set Screw is also known as a Grub Screw. It is almost always driven with an internal-wrenching drive, such as a hex socket (Allen). The set screw passes through a threaded hole in the outer object and is tightened against the inner object to prevent it from moving relative to the outer object. It exerts compressional or clamping force through the bottom tip that projects through the hole.

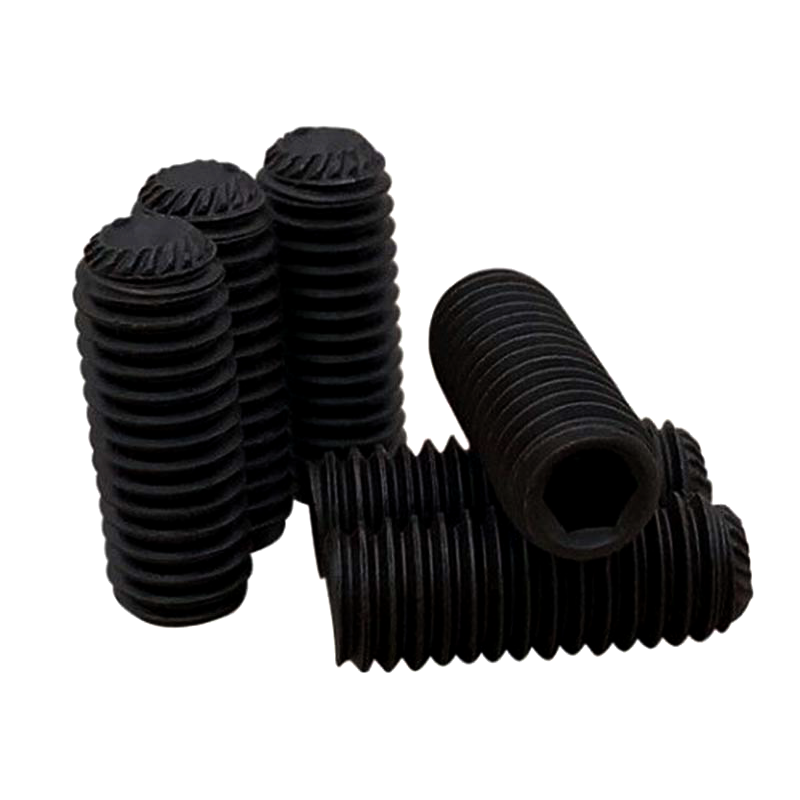

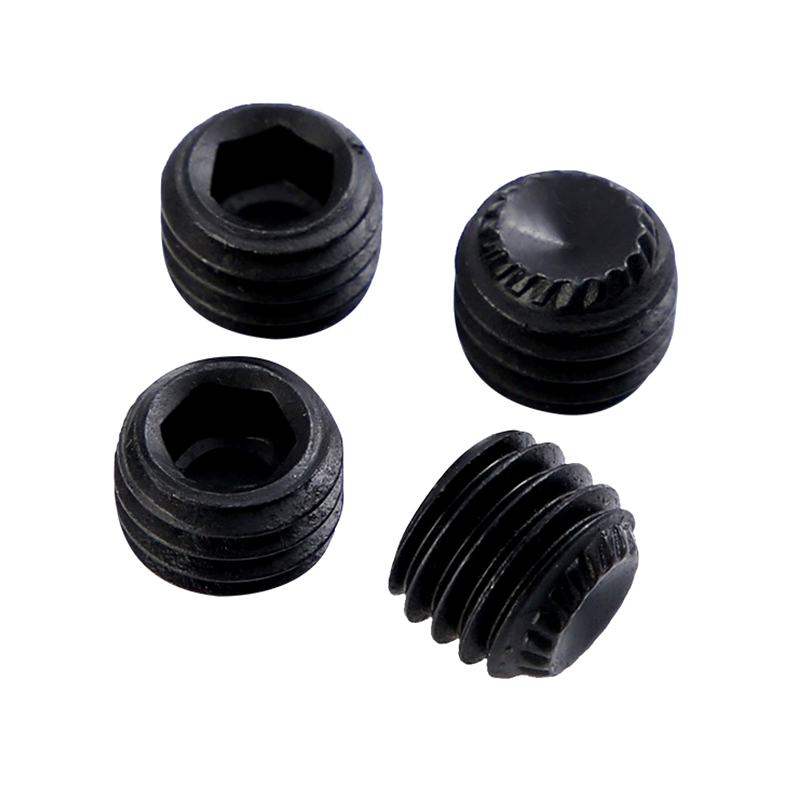

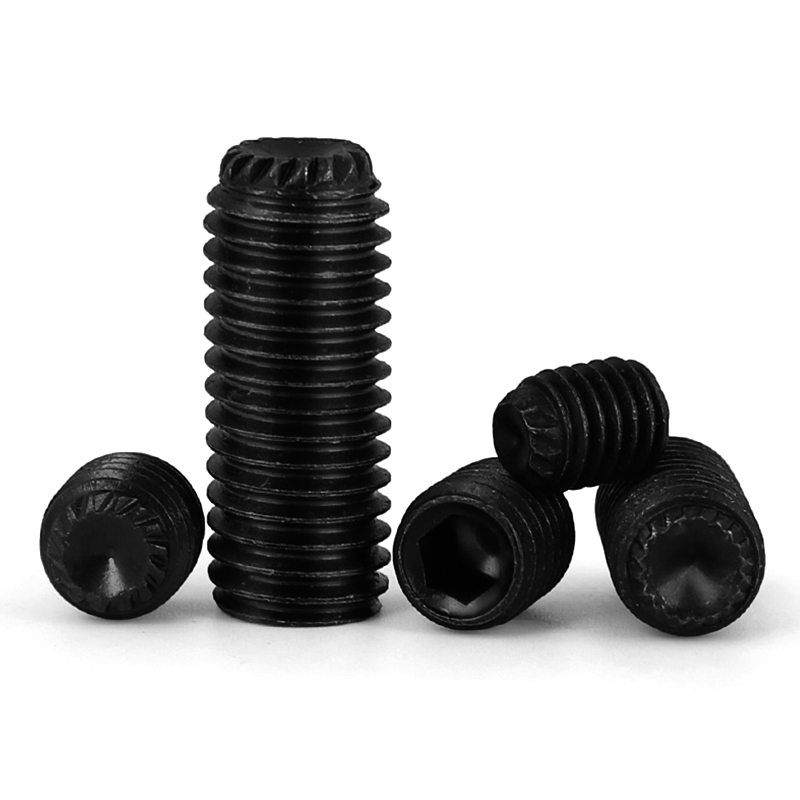

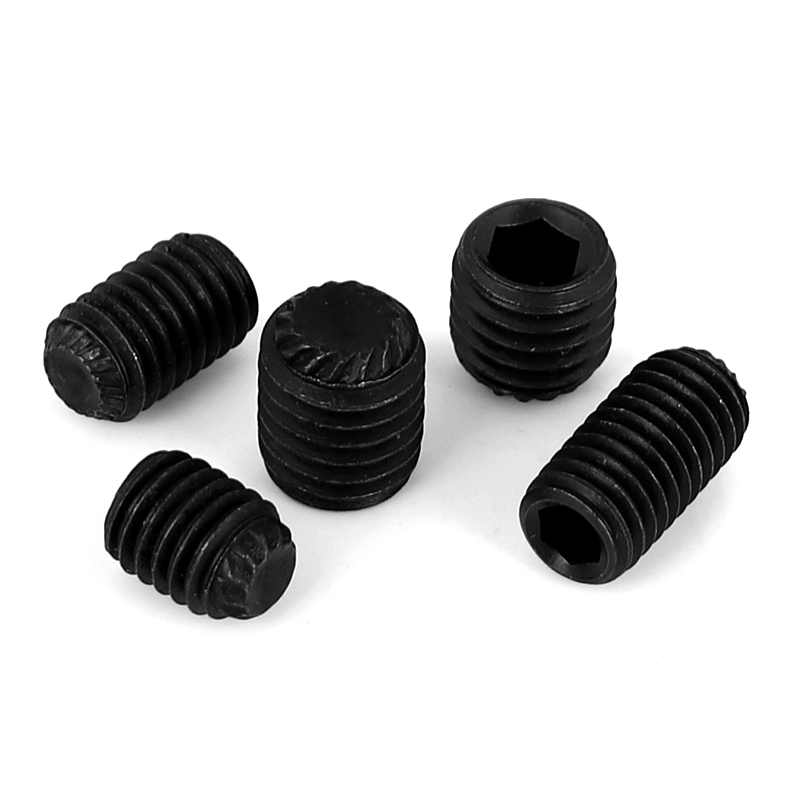

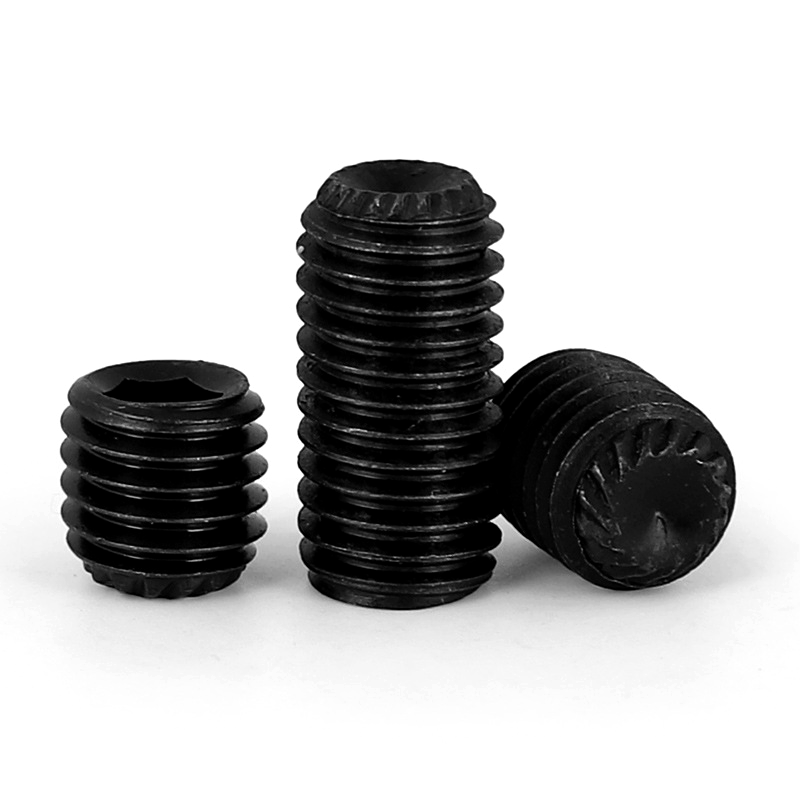

The Knurled Cup Point Set Screw features a serrated ridge on one end which provides better holding power. It improves the grip and helps to reduce loosening due to vibration.
Material:
Alloy steel black oxide finish/ Carbon steel black oxide finish
A high strength heat treated alloy steel/ carbon steel. A chemically produced coating that leaves the steel surface with a matte black finish and offers mild corrosion resistance.
PORAY SCREW offers not only standard and metric cup point set screws in stainless steel, but also alloy and carbon steel. Additional features such as pre-applied nylon-patch and nylon-pellets are also available. OEM & ODM could be provided. Welcome your inquiry.
|
Thread Diameter d |
P |
dp |
e min |
s |
t min |
L |
||||
|
max |
min |
nominal |
min |
max |
||||||
|
M1.4 |
0.3 |
0.7 |
0.45 |
0.803 |
0.7 |
0.711 |
0.724 |
0.6 |
1.4 |
2.5-6 |
|
M1.6 |
0.35 |
0.8 |
0.55 |
0.803 |
0.7 |
0.711 |
0.724 |
0.7 |
1.5 |
2.5-6 |
|
M1.8 |
0.35 |
0.9 |
0.65 |
0.803 |
0.7 |
0.711 |
0.724 |
0.8 |
1.6 |
2.5-6 |
|
M2 |
0.4 |
1 |
0.75 |
1.003 |
0.9 |
0.889 |
0.902 |
0.8 |
1.7 |
3-10 |
|
M2.5 |
0.45 |
1.2 |
0.95 |
1.427 |
1.3 |
1.27 |
1.295 |
1.2 |
2 |
3-10 |
|
M3 |
0.5 |
1.4 |
1.15 |
1.73 |
1.5 |
1.52 |
1.545 |
1.2 |
2 |
4-20 |
|
M4 |
0.7 |
2 |
1.75 |
2.3 |
2 |
2.02 |
2.045 |
1.5 |
2.5 |
4-20 |
|
M5 |
0.8 |
2.5 |
2.25 |
2.87 |
2.5 |
2.52 |
2.56 |
2 |
3 |
5-25 |
|
M6 |
1 |
3 |
2.75 |
3.44 |
3 |
3.02 |
3.08 |
2 |
3.5 |
6-35 |
|
M8 |
1.25 |
5 |
4.7 |
4.58 |
4 |
4.02 |
4.095 |
3 |
5 |
8-40 |
|
M10 |
1.5 |
6 |
5.7 |
5.72 |
5 |
5.02 |
5.095 |
4 |
6 |
12-40 |
|
M12 |
1.75 |
8 |
7.64 |
6.86 |
6 |
6.02 |
6.095 |
4.8 |
8 |
16-40 |
|
M14 |
2 |
9 |
8.64 |
6.86 |
6 |
6.02 |
6.095 |
5.6 |
9 |
|
|
M16 |
2 |
10 |
9.64 |
9.15 |
8 |
8.025 |
8.115 |
6.4 |
10 |
20-40 |
|
M18 |
2.5 |
12 |
11.57 |
11.43 |
10 |
10.025 |
10.115 |
7.2 |
11 |
|
|
M20 |
2.5 |
14 |
13.57 |
11.43 |
10 |
10.025 |
10.115 |
8 |
12 |
20-40 |
|
M22 |
2.5 |
16 |
15.57 |
13.72 |
12 |
12.032 |
12.142 |
9 |
13.5 |
|
|
M24 |
3 |
16 |
15.57 |
13.72 |
12 |
12.032 |
12.142 |
10 |
15 |
30-60 |
More products of set screws available:
DIN913 Flat Point Set Screw, DIN914 Cone Point Set Screw, DIN915 Half Dog Set Screw, DIN916 Cup Point Set Screw, DIN916 with Knurling, Soft Nylon Tip Set Screw, Ball Point Set Screw, Torx Set Screw, Denoise, Carbon Steel Set Screw, Slotted Set Screw, Off-Center Rivet, Non-Standard Set Screw;
