DIN915 Carbon Steel Grade 12.9 Allen Dog Grub Screws M2-M12 Hex Socket Head Set Screw with Dog Point

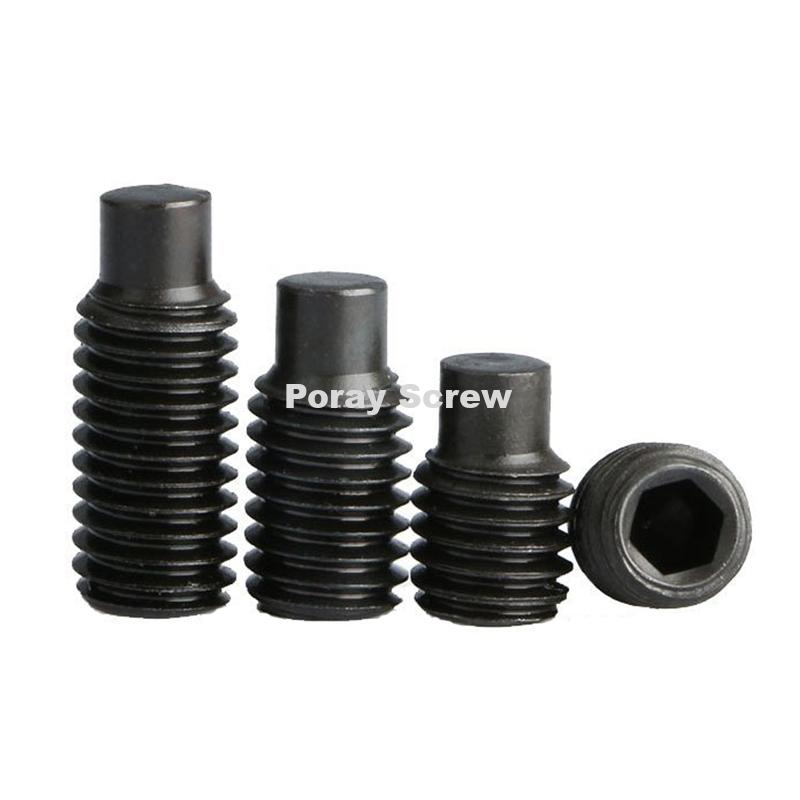

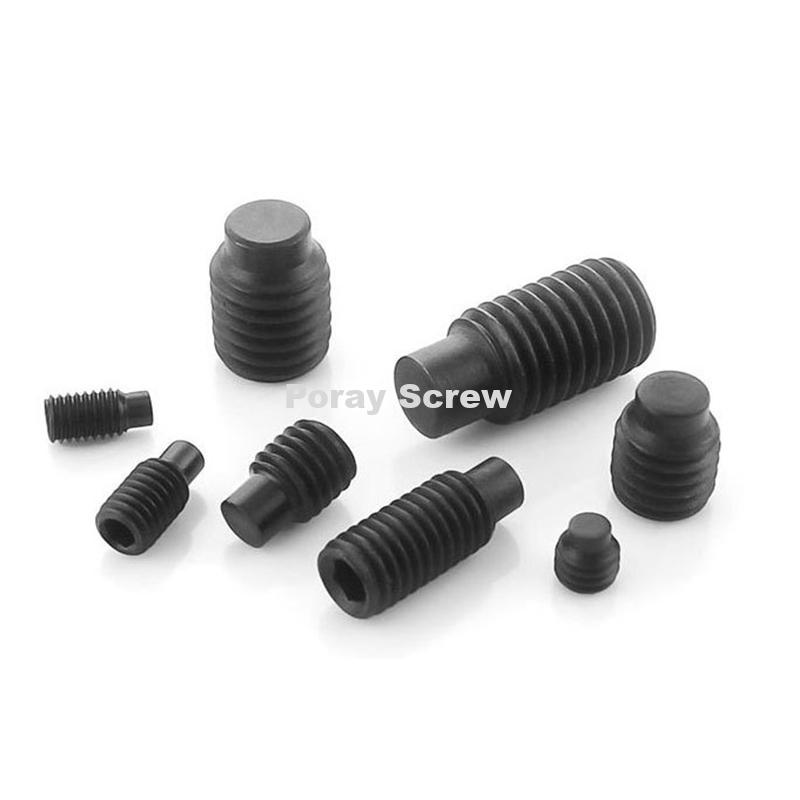

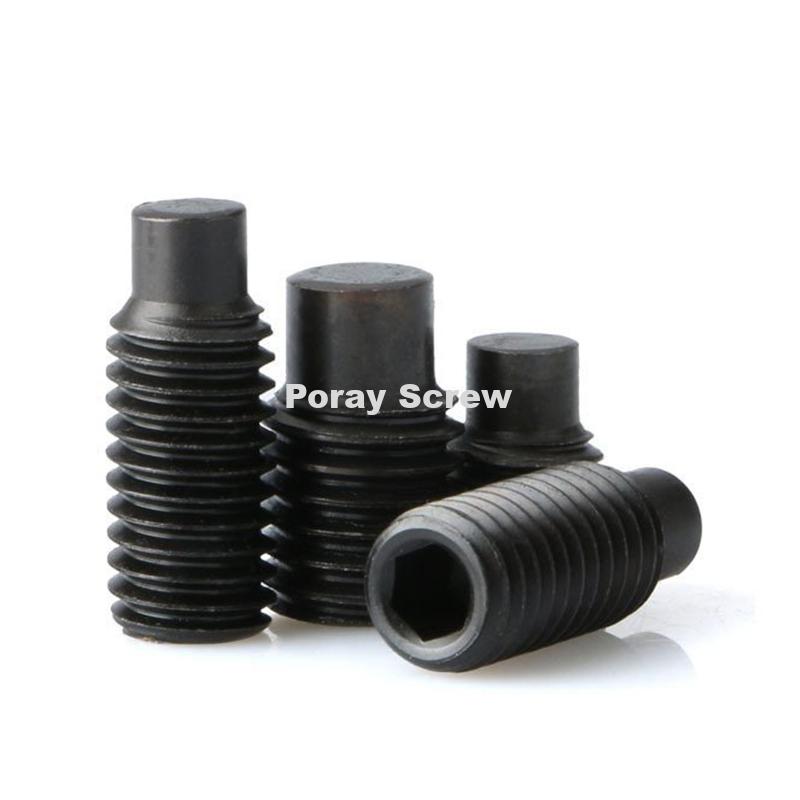

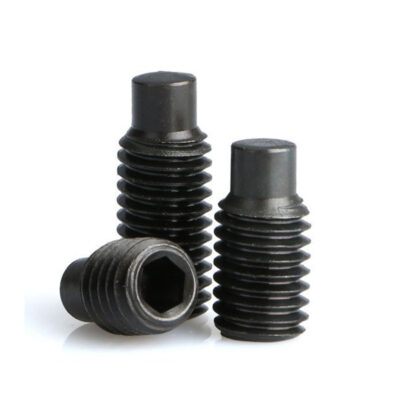

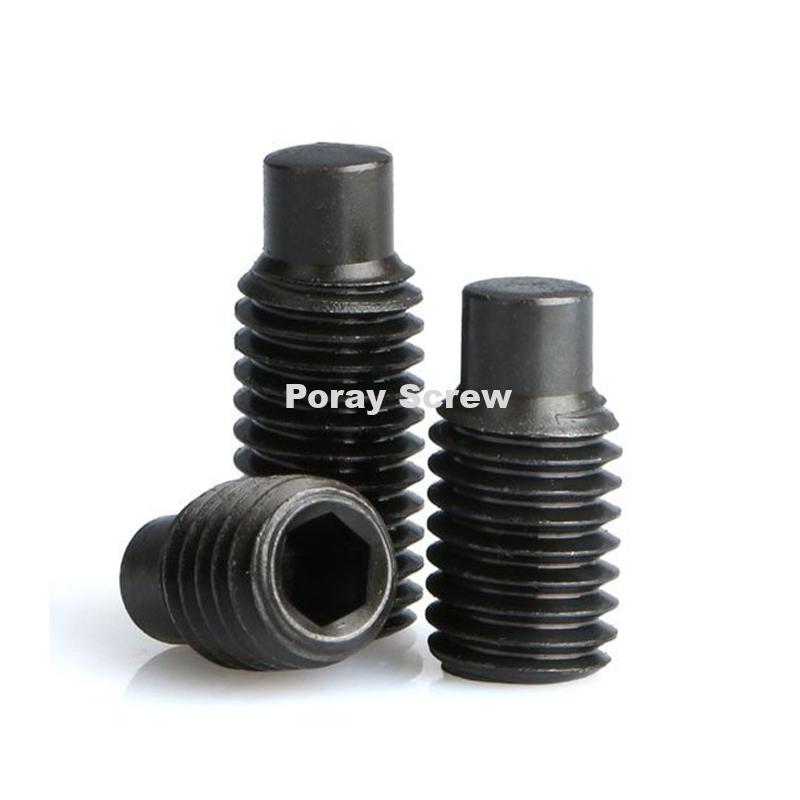

Hexagon Socket Set Screws with Dog Point are made as per DIN 915 standard. Dog point set screws, also known as extended point set screws, feature a protruding tip with a flat surface on the end that opposes the hex drive. This protrusion is longer on the full dog set screw than on its half dog point relative. Designed for permanent setting, the protrusion should fit into a matching hole in the workpiece much as a dowel pin would.
We offer standard full dog set screws and half dog set screws as well as options with a nylon patch for thread locking. Customization & non-standard such dog point socket set screws could be provided as per drawing or samples. Welcome your inquiry.
d | P | dp | s | t | ||
max | min | max | min | min | ||
M1.4 | 0.3 | 0.7 | 0.45 | 0.724 | 0.711 | 0.6 |
M1.6 | 0.35 | 0.8 | 0.55 | 0.724 | 0.711 | 0.7 |
M1.8 | 0.35 | 0.9 | 0.65 | 0.724 | 0.711 | 0.8 |
M2 | 0.4 | 1 | 0.75 | 0.902 | 0.889 | 0.8 |
M2.5 | 0.45 | 1.5 | 1.25 | 1.295 | 1.27 | 1.2 |
M3 | 0.5 | 2 | 1.75 | 1.545 | 1.52 | 1.2 |
M4 | 0.7 | 2.5 | 2.25 | 2.045 | 2.02 | 1.5 |
M5 | 0.8 | 3.5 | 3.2 | 2.56 | 2.52 | 2 |
M6 | 1 | 4 | 3.7 | 3.06 | 3.02 | 2 |
M8 | 1.25 | 5.5 | 5.2 | 4.095 | 4.02 | 3 |
M10 | 1.5 | 7 | 6.64 | 5.095 | 5.02 | 4 |
M12 | 1.75 | 8.5 | 3.14 | 6.095 | 6.02 | 4.8 |
M14 | 2 | 10 | 9.64 | 6.095 | 6.02 | 5.6 |
M16 | 2 | 12 | 11.57 | 8.115 | 8.025 | 6.4 |
M18 | 2.5 | 13 | 12.57 | 10.115 | 10.025 | 7.2 |
M20 | 2.5 | 15 | 14.57 | 10.115 | 10.025 | 8 |
M22 | 2.5 | 17 | 16.57 | 12.142 | 12.032 | 9 |
M24 | 3 | 18 | 17.57 | 12.142 | 12.032 | 10 |
