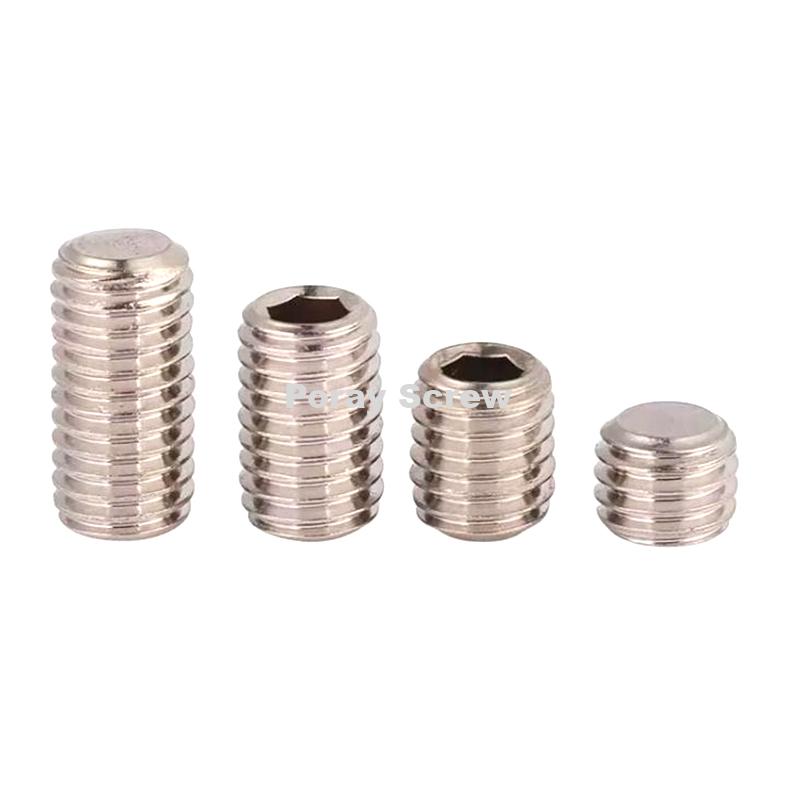

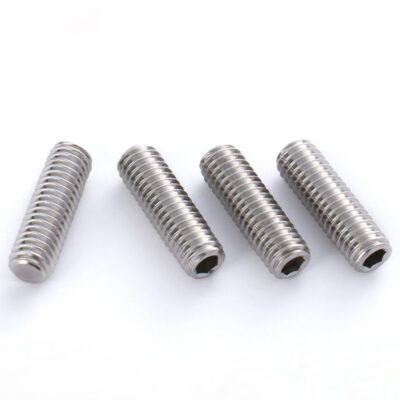

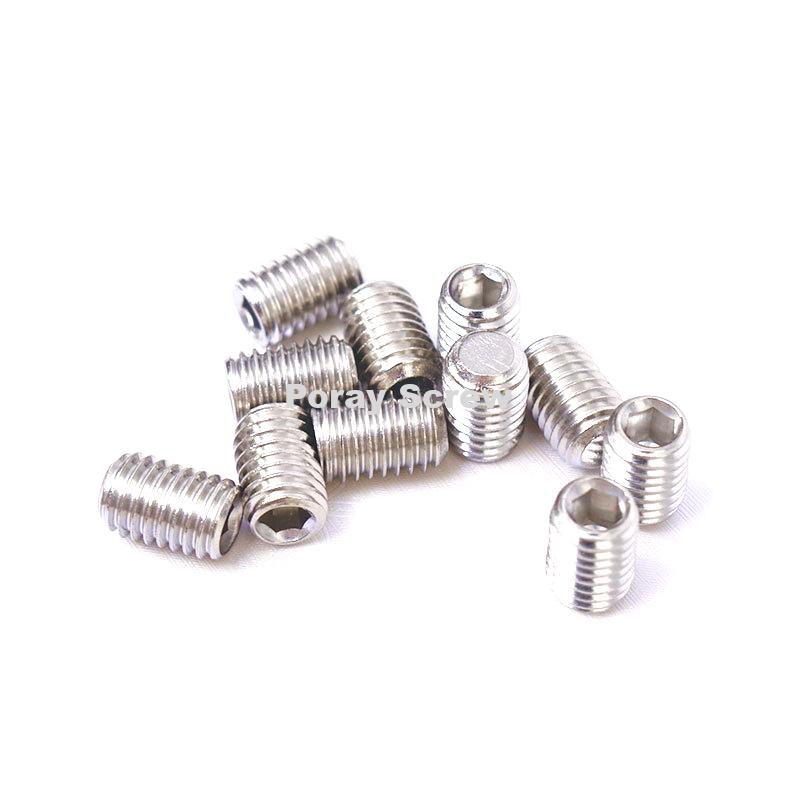

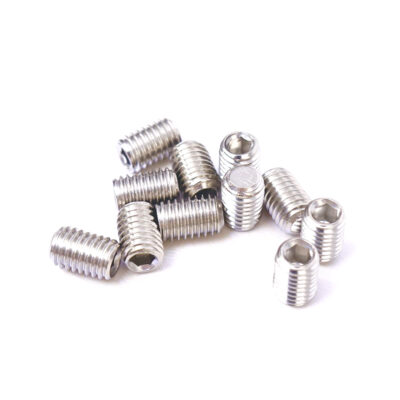

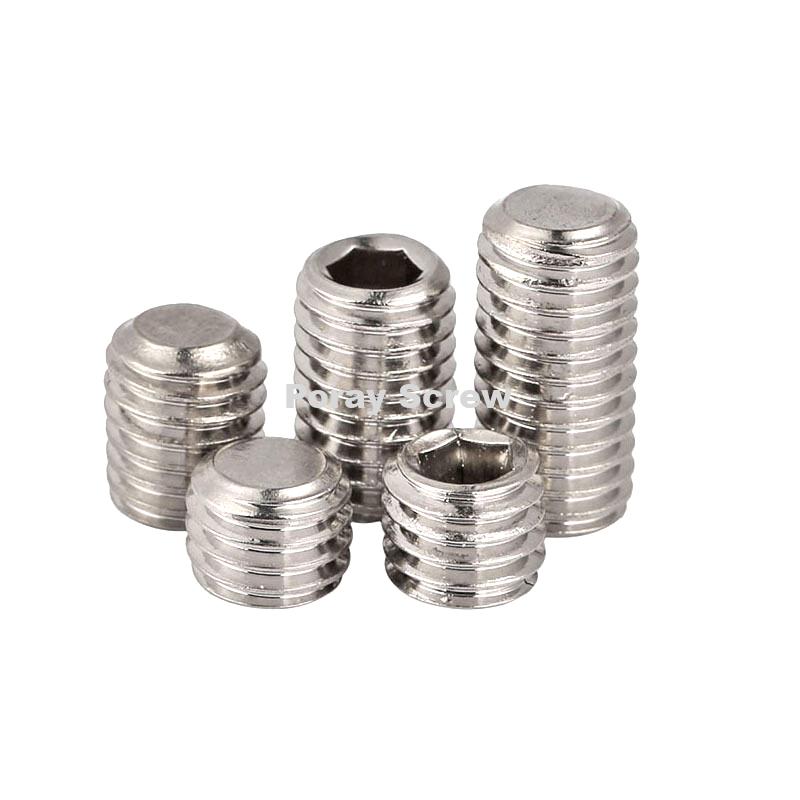

Hexagon socket set screw with flat end DIN 913 Stainless steel A2 A4 in M2 M6 M8 M10 M20 M24

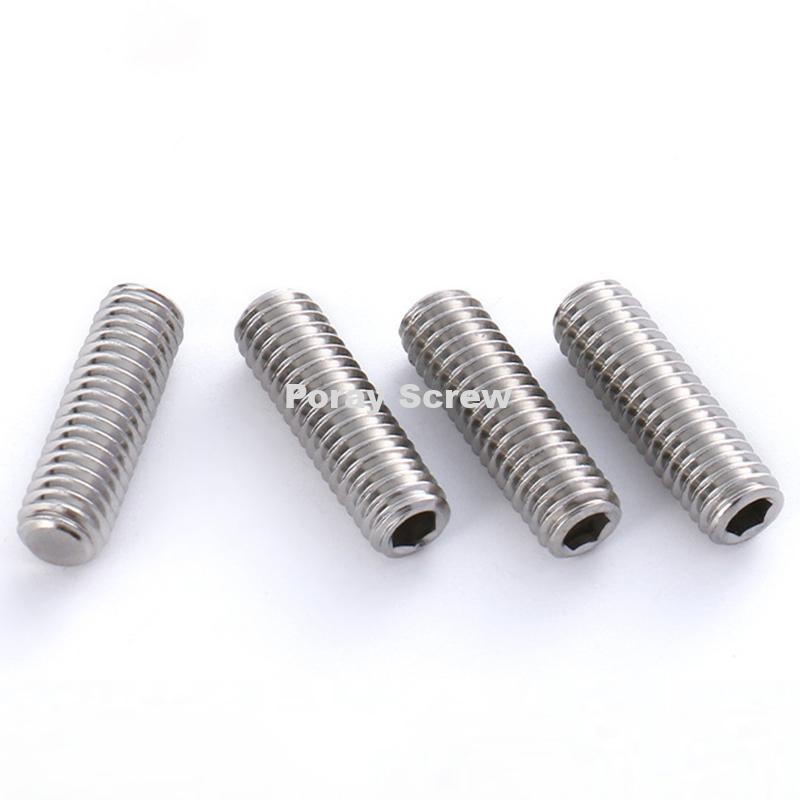

Flat Point Socket Set Screw to DIN 913 have a hexagonal recess and is driven using a hex wrench or insert bit. This makes these screws much more efficient than the slotted screw products as the hex socket drive has more resistance to cam out and can be used with power drivers enabling faster use and higher torque to be achieved.
These Socket Set Screw with Flat Point are headless, meaning that there is no head projecting past the major diameter, making this a fully threaded fastener.
The socket drive of the set screw is turned until it meets the inner object, then exerting a pressure on the inner object creating a clamping force.

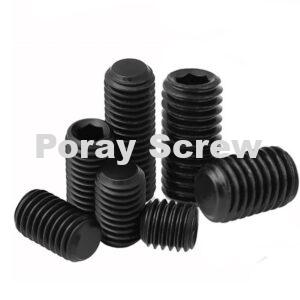

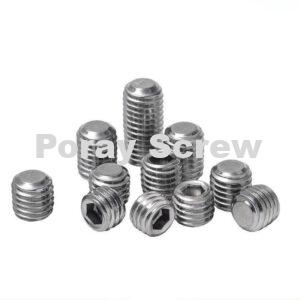

Socket Set Screws Flat Point to DIN 913 are available in Steel 45H, A2 Stainless Steel, A4 Stainless Steel and Nylon as standard. Other materials are available upon request including Brass, Aluminium and Titanium.
Thread sizes from M1.4 to M30 as standard, with lengths ranging from 2mm to 100mm. Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.
|

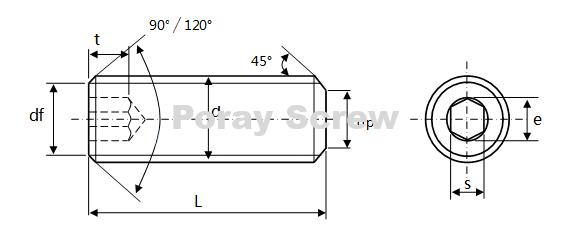

螺纹规格 d |
螺距 P |
dp |
df ≈ |
e min |
s |
t min |
L |
||||
|
max |
min |
公称nominal |
max |
min |
|||||||
|
M1.4 |
0.3 |
0.7 |
0.45 |
螺纹小径 |
0.803 |
0.7 |
0.711 |
0.724 |
0.6 |
1.4 |
2.5-6 |
|
M1.6 |
0.35 |
0.8 |
0.55 |
0.803 |
0.7 |
0.711 |
0.724 |
0.7 |
1.5 |
2.5-6 |
|
|
M1.8 |
0.35 |
0.9 |
0.65 |
0.803 |
0.7 |
0.711 |
0.724 |
0.8 |
1.6 |
2.5-6 |
|
|
M2 |
0.4 |
1 |
0.75 |
1.003 |
0.9 |
0.889 |
0.902 |
0.8 |
1.7 |
3-10 |
|
|
M2.5 |
0.45 |
1.5 |
1.25 |
1.427 |
1.3 |
1.27 |
1.259 |
1.2 |
2 |
3-10 |
|
|
M3 |
0.5 |
2 |
1.75 |
1.73 |
1.5 |
1.52 |
1.545 |
1.2 |
2 |
3-20 |
|
|
M4 |
0.7 |
2.5 |
2.25 |
2.3 |
2 |
2.02 |
2.045 |
1.5 |
2.5 |
4-20 |
|
|
M5 |
0.8 |
3.5 |
3.2 |
2.87 |
2.5 |
2.52 |
2.56 |
2 |
3 |
5-25 |
|
|
M6 |
1 |
4 |
3.7 |
3.44 |
3 |
3.02 |
3.08 |
2 |
3.5 |
6-35 |
|
|
M8 |
1.25 |
5.5 |
5.2 |
4.58 |
4 |
4.02 |
4.095 |
3 |
5 |
8-40 |
|
|
M10 |
1.5 |
7 |
6.64 |
5.72 |
5 |
5.02 |
5.095 |
4 |
6 |
12-40 |
|
|
M12 |
1.75 |
8.5 |
8.14 |
6.86 |
6 |
6.02 |
6.095 |
4.8 |
8 |
16-40 |
|
|
M14 |
2 |
10 |
9.64 |
6.86 |
6 |
6.02 |
6.095 |
5.6 |
9 |
||
|
M16 |
2 |
12 |
11.57 |
9.15 |
8 |
8.025 |
8.115 |
6.4 |
10 |
20-40 |
|
|
M18 |
2.5 |
13 |
12.57 |
11.43 |
10 |
10.025 |
10.115 |
7.2 |
11 |
||
|
M20 |
2.5 |
15 |
14.57 |
11.43 |
10 |
10.025 |
10.115 |
8 |
12 |
20-50 |
|
|
M22 |
2.5 |
17 |
16.57 |
13.72 |
12 |
12.032 |
12.142 |
9 |
13.5 |
||
|
M24 |
3 |
18 |
17.57 |
13.72 |
12 |
12.032 |
12.142 |
10 |
15 |
25-60 |
|
More products of set screws available:

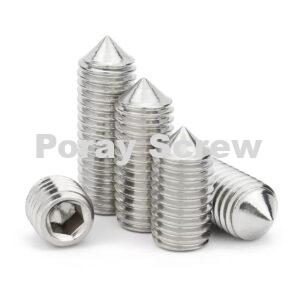

DIN913 Flat Point Set Screw, DIN914 Cone Point Set Screw, DIN915 Half Dog Set Screw, DIN916 Cup Point Set Screw, DIN916 with Knurling, Soft Nylon Tip Set Screw, Ball Point Set Screw, Torx Set Screw, Denoise, Carbon Steel Set Screw, Slotted Set Screw, Off-Center Rivet, Non-Standard Set Screw
