Set screws, Allen, Cup point M6 M8 M10 M12 M16 M20 Stainless Steel AISI304 AISI316

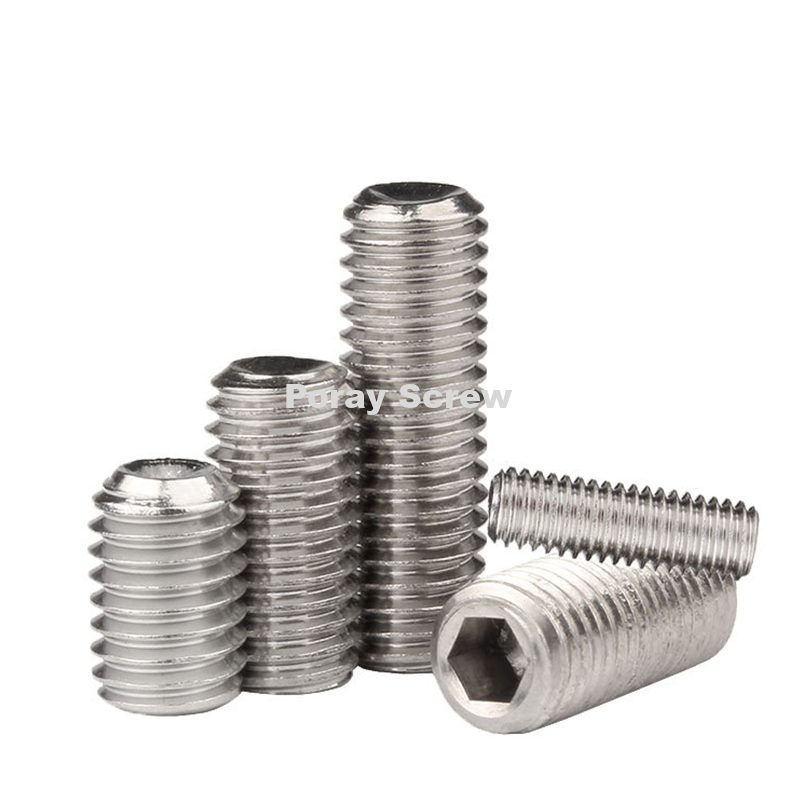

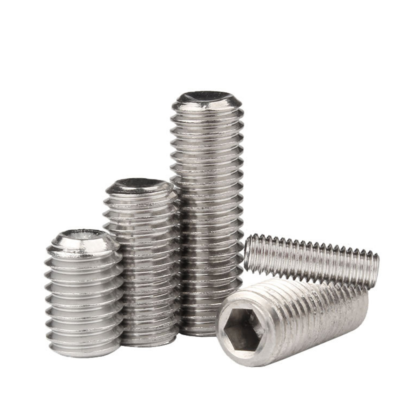

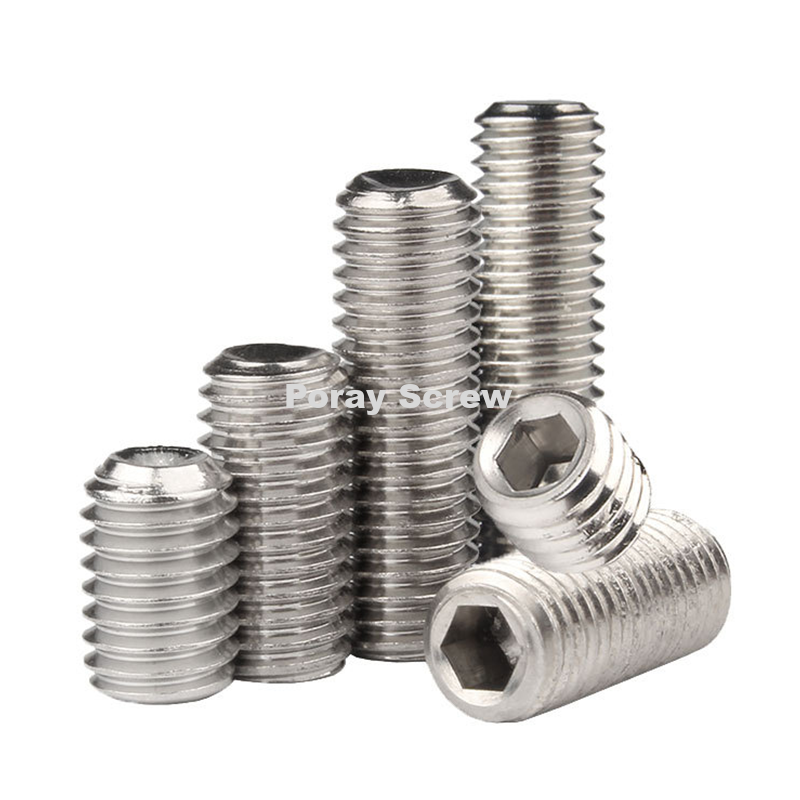

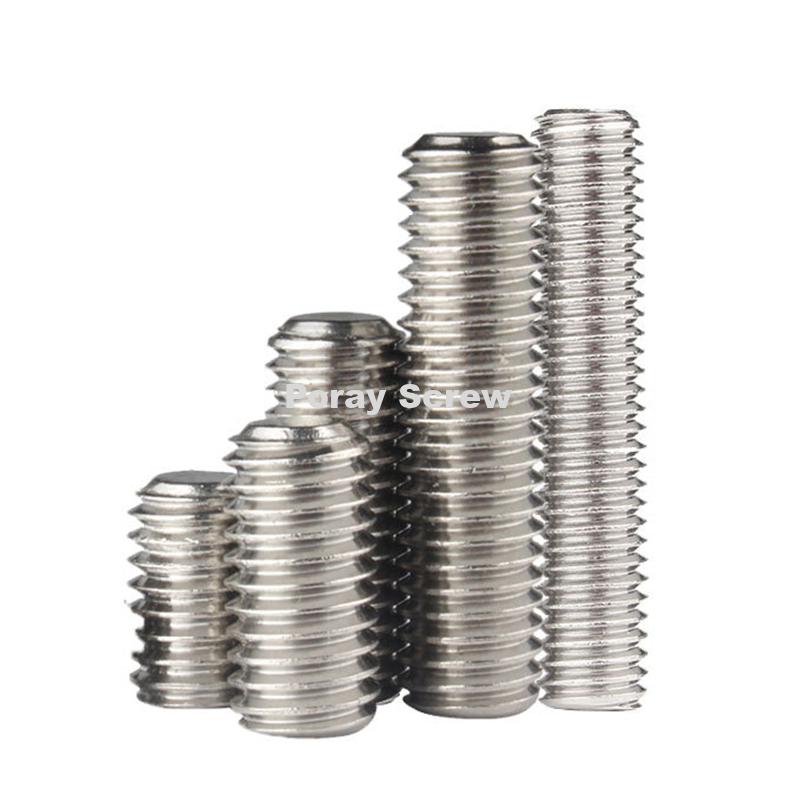

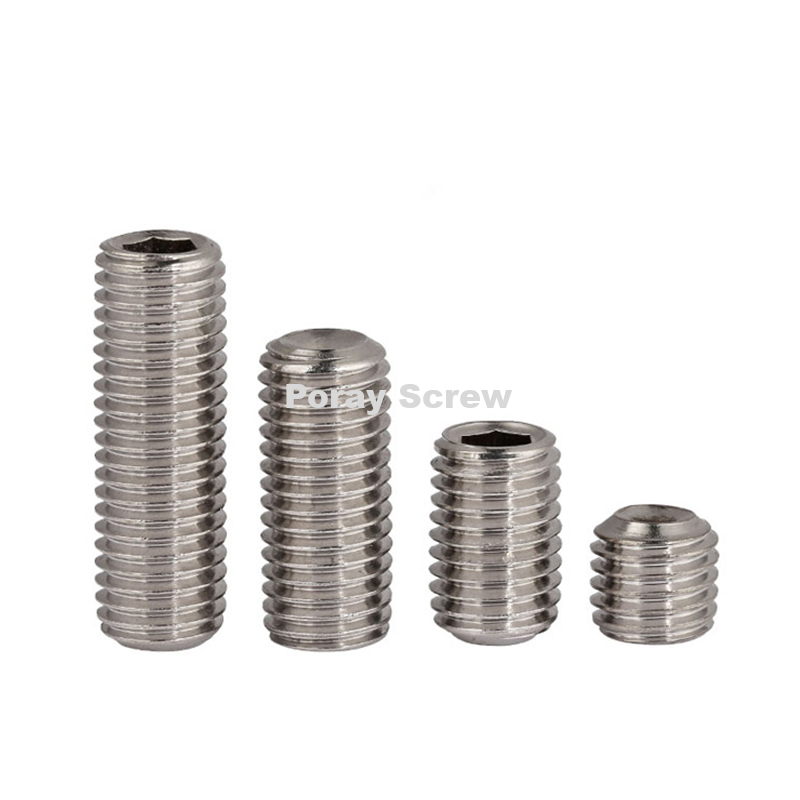

Cup point socket set screw grub screw features a hexagon drive at one end and a cup-shaped indentation at the other end. The most commonly used set screw head style, the thin edge of the cup end digs into the contact surface for high holding power. These types of cup point set screw are very useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
Material:
Stainless steel 18-8: A corrosion resistant steel alloy. The most common stainless steel for general hardware use.
Stainless steel 316: A highly corrosion resistant grade of stainless steel. Ideal in salt water and chlorine environments.
PORAY SCREW offers not only standard and metric cup point set screws in stainless steel, but also alloy and carbon steel. Additional features such as pre-applied nylon-patch and nylon-pellets are also available. OEM & ODM could be provided. Welcome your inquiry.
|
Thread Diameter d |
P |
dp |
e min |
s |
t min |
L |
||||
|
max |
min |
nominal |
min |
max |
||||||
|
M1.4 |
0.3 |
0.7 |
0.45 |
0.803 |
0.7 |
0.711 |
0.724 |
0.6 |
1.4 |
2.5-6 |
|
M1.6 |
0.35 |
0.8 |
0.55 |
0.803 |
0.7 |
0.711 |
0.724 |
0.7 |
1.5 |
2.5-6 |
|
M1.8 |
0.35 |
0.9 |
0.65 |
0.803 |
0.7 |
0.711 |
0.724 |
0.8 |
1.6 |
2.5-6 |
|
M2 |
0.4 |
1 |
0.75 |
1.003 |
0.9 |
0.889 |
0.902 |
0.8 |
1.7 |
3-10 |
|
M2.5 |
0.45 |
1.2 |
0.95 |
1.427 |
1.3 |
1.27 |
1.295 |
1.2 |
2 |
3-10 |
|
M3 |
0.5 |
1.4 |
1.15 |
1.73 |
1.5 |
1.52 |
1.545 |
1.2 |
2 |
4-20 |
|
M4 |
0.7 |
2 |
1.75 |
2.3 |
2 |
2.02 |
2.045 |
1.5 |
2.5 |
4-20 |
|
M5 |
0.8 |
2.5 |
2.25 |
2.87 |
2.5 |
2.52 |
2.56 |
2 |
3 |
5-25 |
|
M6 |
1 |
3 |
2.75 |
3.44 |
3 |
3.02 |
3.08 |
2 |
3.5 |
6-35 |
|
M8 |
1.25 |
5 |
4.7 |
4.58 |
4 |
4.02 |
4.095 |
3 |
5 |
8-40 |
|
M10 |
1.5 |
6 |
5.7 |
5.72 |
5 |
5.02 |
5.095 |
4 |
6 |
12-40 |
|
M12 |
1.75 |
8 |
7.64 |
6.86 |
6 |
6.02 |
6.095 |
4.8 |
8 |
16-40 |
|
M14 |
2 |
9 |
8.64 |
6.86 |
6 |
6.02 |
6.095 |
5.6 |
9 |
|
|
M16 |
2 |
10 |
9.64 |
9.15 |
8 |
8.025 |
8.115 |
6.4 |
10 |
20-40 |
|
M18 |
2.5 |
12 |
11.57 |
11.43 |
10 |
10.025 |
10.115 |
7.2 |
11 |
|
|
M20 |
2.5 |
14 |
13.57 |
11.43 |
10 |
10.025 |
10.115 |
8 |
12 |
20-40 |
|
M22 |
2.5 |
16 |
15.57 |
13.72 |
12 |
12.032 |
12.142 |
9 |
13.5 |
|
|
M24 |
3 |
16 |
15.57 |
13.72 |
12 |
12.032 |
12.142 |
10 |
15 |
30-60 |
More products of set screws available:
DIN913 Flat Point Set Screw, DIN914 Cone Point Set Screw, DIN915 Half Dog Set Screw, DIN916 Cup Point Set Screw, DIN916 with Knurling, Soft Nylon Tip Set Screw, Ball Point Set Screw, Torx Set Screw, Denoise, Carbon Steel Set Screw, Slotted Set Screw, Off-Center Rivet, Non-Standard Set Screw;
